A Chladni plate is a thin, usually metal, plate that vibrates when excited by sound waves or mechanical forces. These vibrations cause the plate to resonate at certain frequencies, producing beautiful and intricate patterns that can be seen by sprinkling fine powder (like sand or salt) on its surface. These patterns form because the powder accumulates along the nodal lines, where the plate does not move, creating a visual representation of the vibrational modes.
Who Discovered the Chladni Plate?
The Chladni plate was discovered by Ernst Chladni, a German physicist and musician, in the late 18th century. Chladni was interested in the study of sound and vibration, which led him to explore how different materials respond to vibrations. He was particularly fascinated by the idea of making sound waves visible, allowing people to “see” the effects of sound on a material surface. This discovery was a breakthrough in acoustics and laid the foundation for modern studies in vibration physics, instrument design, and even engineering.
Chladni’s work helped answer fundamental questions about how different parts of a surface vibrate, which was essential for understanding the physics of sound and for improving the design of musical instruments. By visualizing the vibration patterns, Chladni could explain why different shapes and materials produce different sounds, leading to better-tuned instruments.
Drawing an Analogy: Vibrating String vs. Chladni Plate Vibrations
To understand Chladni plate vibrations, it’s helpful to draw an analogy to something simpler and more familiar: a vibrating string, like the ones on a guitar or a violin.
Vibrating String: When you pluck a string, it vibrates back and forth, creating waves that travel along the length of the string. These waves reflect off the ends of the string, interfering with each other and creating standing waves. The points where the string doesn’t move are called nodes, and the points where the string vibrates the most are called antinodes. These vibrations produce sound, and the frequency of the vibration determines the pitch.
Chladni Plate: The Chladni plate behaves similarly, but instead of a one-dimensional string, we have a two-dimensional surface. When the plate is vibrated at certain frequencies, it forms standing waves across its surface. Just like with the string, there are nodes (where the plate doesn’t move) and antinodes (where the plate vibrates the most). The difference is that these vibrations create complex, two-dimensional patterns rather than a single, simple wave. The powder on the plate collects at the nodes, making the vibration patterns visible.
So, both the vibrating string and the Chladni plate are examples of standing waves, but the Chladni plate offers a richer and more complex set of patterns because it’s a two-dimensional surface.
Nodes and Antinodes in Chladni Plate Patterns
When a Chladni plate vibrates, it forms regions where the surface moves a lot (antinodes) and regions where the surface doesn’t move at all (nodes). The powder sprinkled on the plate settles in the nodal lines because those are the places where there is no movement. This creates a visible pattern that corresponds to the vibrational mode of the plate.
Nodes: These are the points or lines on the plate where there is no movement during vibration. The powder collects here because these regions are stationary.
Antinodes: These are the areas of maximum movement, where the plate vibrates the most. The powder is pushed away from these regions.
The patterns you see on the plate are the result of how these nodes and antinodes distribute themselves across the surface. As the frequency of vibration changes, the positions of nodes and antinodes shift, leading to different patterns.

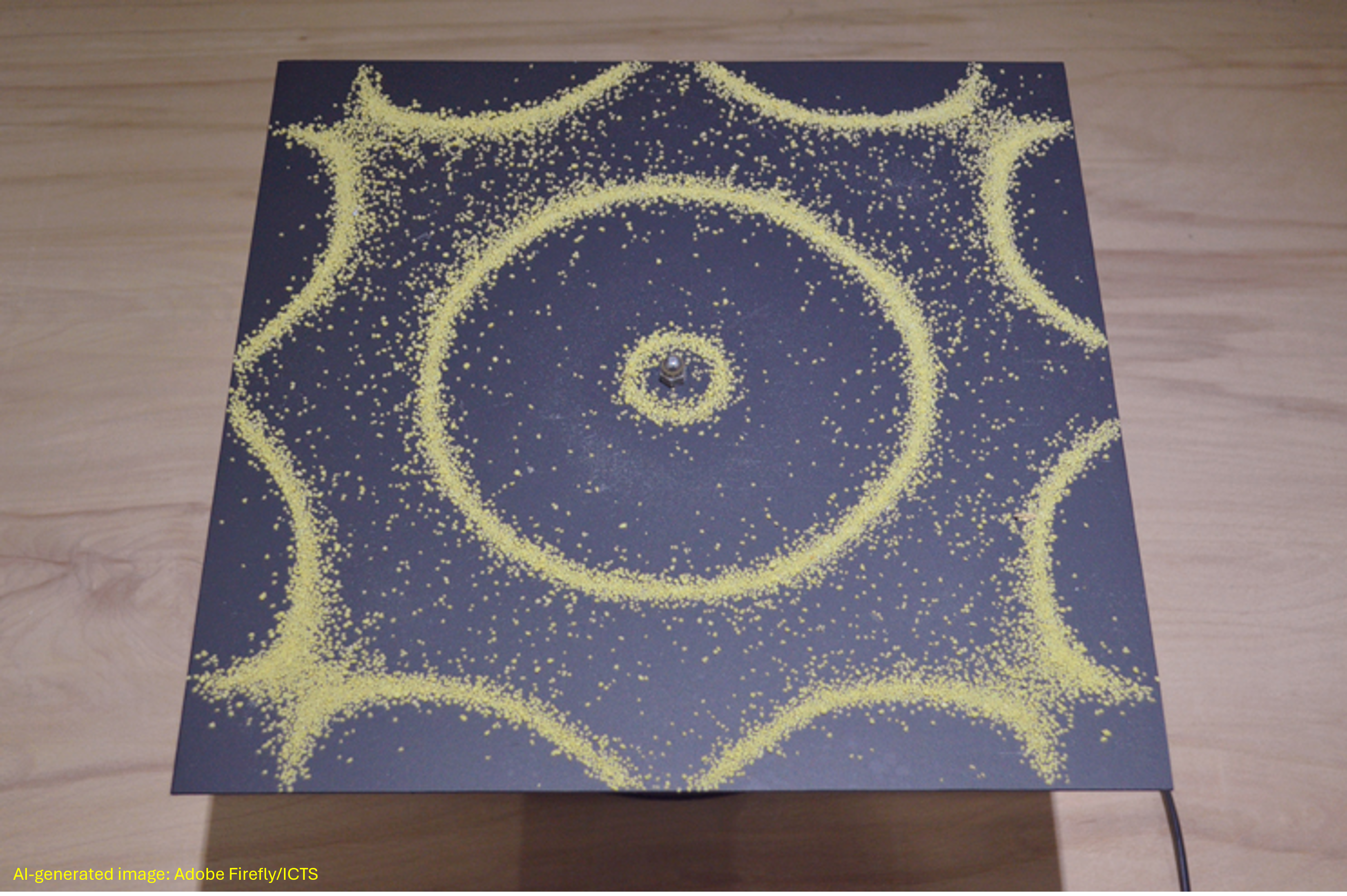

Why Do These Patterns Form? The patterns form because of the way sound waves interfere with each other on the surface of the plate. When the frequency is just right, the waves constructively and destructively interfere to create standing waves, which lead to the formation of nodes and antinodes. These standing waves are essentially the plate’s way of “resonating” at a particular frequency, and each pattern corresponds to a different mode of vibration. The patterns can be found in the image and videos below:
Patterns generated on a metal plate vibrated using a violin bow
How Do the Size and Shape of the Metal Plate Affect Pattern Formations?
The size and shape of a metal plate significantly impact the patterns of nodes and antinodes that form during vibration. When the size of a plate is doubled, for instance, the wavelengths of the standing waves that can fit across the plate also change. Specifically, as the size of a square plate is increased, the frequencies required to produce the same vibrational modes decrease, and the patterns become more intricate, with more nodes and antinodes appearing on the surface. This is because a larger plate can support longer wavelengths, allowing for more complex interference patterns.
Changing the shape of the plate has an even more profound effect on the patterns formed. A square plate, due to its symmetrical geometry, tends to produce symmetric and regular nodal patterns, often with straight lines or simple curves dividing the plate into equal sections. If the plate’s shape is changed to a circle, the symmetry of the plate is altered, resulting in circular or radial nodal patterns. The modes generated in a circular plate often feature concentric rings or radial lines as nodes, which are quite different from the straight or grid-like patterns seen in square plates. The change in geometry alters the boundary conditions for the waves, leading to a different set of natural frequencies and thus a distinct set of vibrational modes. Therefore, both the size and shape of the plate are crucial factors in determining the appearance and complexity of the nodal patterns that emerge.
Harmonic and Anharmonic Modes on a Square-Shaped Metal Chladni Plate
When we talk about the “modes” of vibration on a Chladni plate, we’re referring to the specific patterns of nodes and antinodes that form at different frequencies. On a square-shaped plate, these modes can be either harmonic or anharmonic.
Harmonic Modes: These are the simplest and most symmetric patterns. For a square plate, a harmonic mode might have nodes that are straight lines dividing the plate into equal sections, like a checkerboard. The frequency that produces a harmonic mode is usually related to the fundamental frequency, which is the lowest frequency at which the plate can vibrate.
Anharmonic Modes: These modes are more complex and irregular. They occur at frequencies that are not simple multiples of the fundamental frequency. The patterns can be asymmetric, with nodes forming curved lines or more complicated shapes. These modes are harder to predict and can vary significantly depending on the exact shape and material of the plate.
How Can We Know the Different Modes?
To identify the different modes on a square-shaped Chladni plate, you can:
1. Experiment with Different Frequencies: By gradually increasing the frequency of vibration, you can observe how the patterns change. Each new pattern corresponds to a different vibrational mode.
2. Use Mathematical Models: Physicists use mathematical equations to predict the frequencies at which different modes will occur. For a square plate, these predictions take into account the plate’s dimensions, material properties, and boundary conditions (how the plate is held or clamped).
3. Visual Inspection: Simply observing the patterns as you vary the frequency can give you an idea of the harmonic and anharmonic modes. For instance, a simple pattern with straight lines is likely a harmonic mode, while a more intricate pattern is likely anharmonic.
Conclusion
Chladni plates are a wonderful demonstration of the principles of vibration and wave interference. They show us how sound waves can create beautiful, intricate patterns and help us understand the underlying physics of resonance and standing waves. Whether you’re a science enthusiast or a curious learner, studying Chladni plates offers a fascinating glimpse into the world of acoustics and vibration physics.
